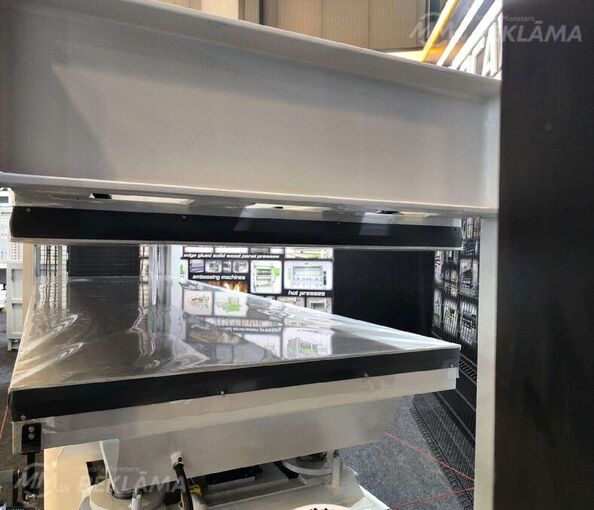

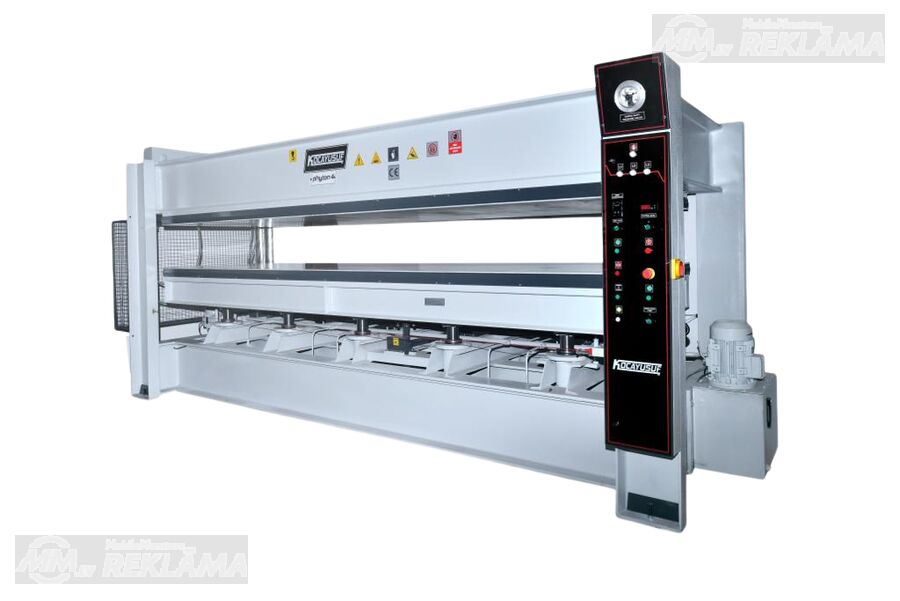

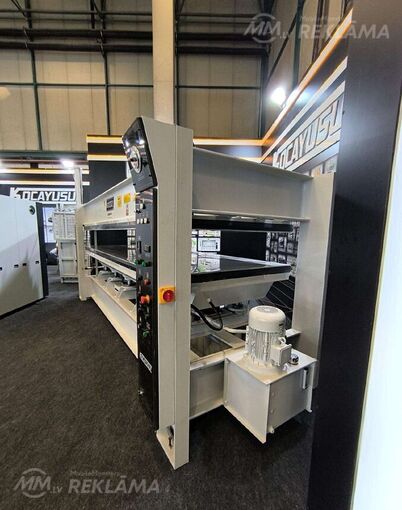

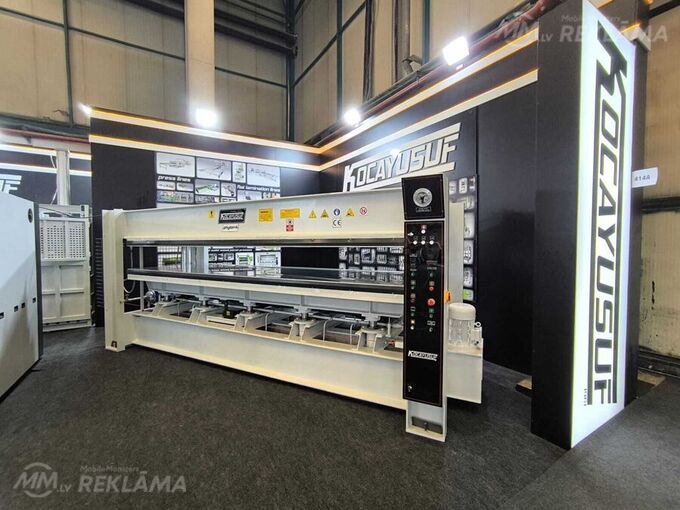

Hydraulic Hot Press Phyton 4 1350x4000 mm from stock

Hydraulic Hot Press Phyton 4 1350x4000 mm

In stock

Technical data:
Press force: 100 tons 1.5 kg/cm²
Cylinder diameter: 70/80 mm
Cylinders: 10 pcs
Weight: 7600 kg
Stroke: 360 mm
Pressure: 2.1 kg/cm²
Total power: approx. 40 kW
Optical level sensor for plate stability
CE compliant
Heating:
Max temperature: 120C
Heating power: ~3537 kW
Hydraulic pump
Advantages:
High efficiency and stable operation
High productivity and reliability
Compact design with high-quality components
Adjustable pressure and flow
Easy maintenance and long service life
Hydraulic system:
Separate pumps for closing and main pressure
Low-noise operation
Hydraulic motor power: 5 kW
Dual system for optimal load distribution
VICKERS (USA) hydraulic valves
Control:
Manual control
Automatic opening via digital timer
Digital thermostat
Two-hand safety start
Pressure adjustment (dual manometer)
Emergency stop button
Safety cable around the press
Parallel movement system (4 sides, gear & rail)
Conditions:
Price excl. VAT
Price includes delivery
0% VAT possible for EU VAT payers

UAB Staklės24.lt official representative of KOCAYUSUF MAKINE in the Baltic States.

Kocayusuf Makine Turkish manufacturer of membrane and hot presses since 1961.
One of the global leaders, ISO certified, exporting to 60+ countries.
